Oilseed Pressing Line

We are always designing and manufacturing vegetable oil pre-treatment and pressing line based on characteristics of different vegetable oils as well as customers’ requirements. In this way, we are able to ensure optimum conditions of the oil obtained by enhancing oil yield, improving protein content and oil quality.

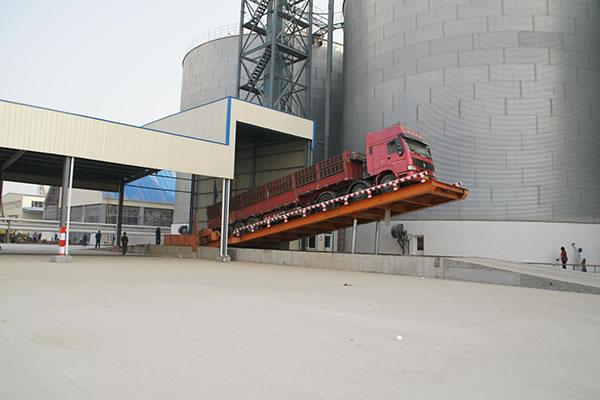

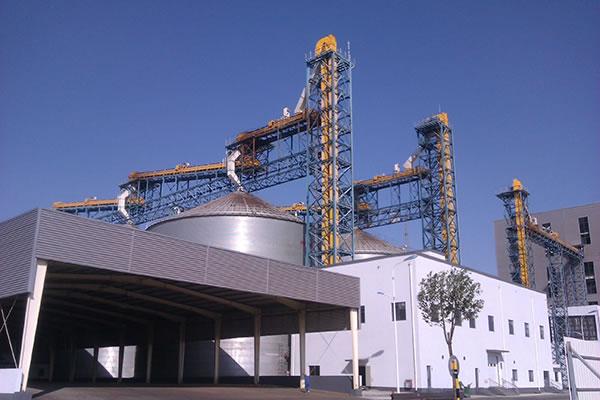

Raw Material Unloading and Warehousing

Major Devices: automatic unloading machine, cleaning and classifying screen, elevator for delivering goods into silos, horizontal conveyor and conveyor for taking goods out of silos

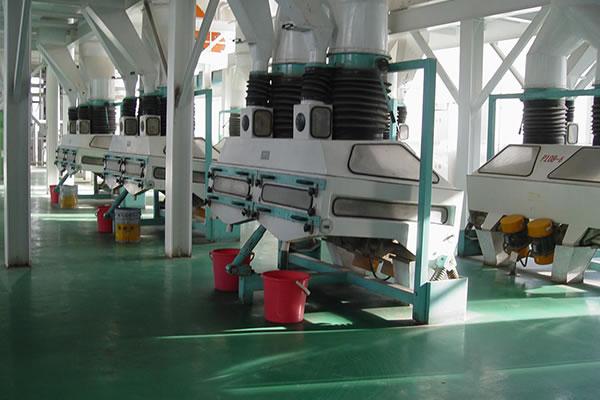

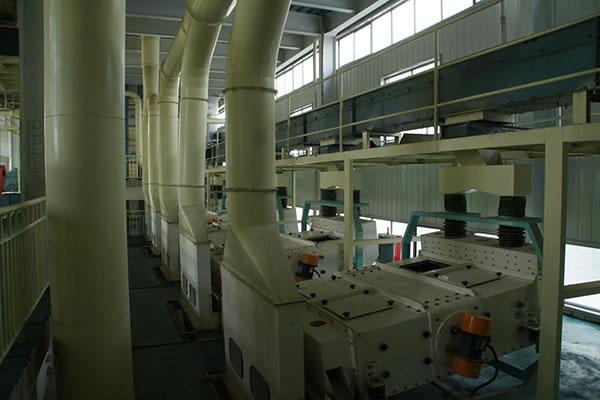

Cleaning, Stone Removing, Weighing

Major Devices: flat classifying screen, specific-gravity stoner, online meter and magnetic separator for iron removal

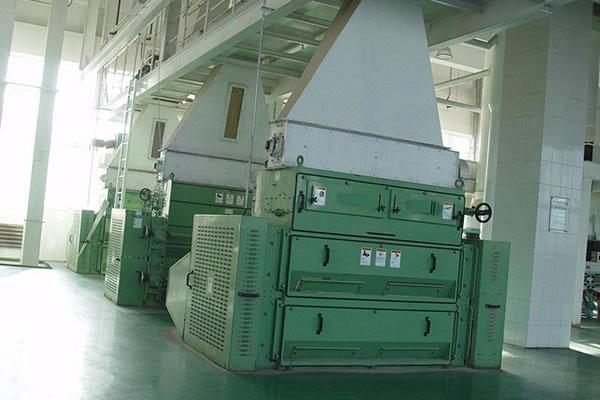

Crushing and seed dehulling Section

Major Devices: magnetic separator for iron removal, crusher (huller) and kernel and husk separator

Features of kernel and husk separator
Inverter-driven feeding device is able to ensure even distribution of materials. An air-lock valve is installed at the feeder to guarantee normal feeding. Generally, soybeans or other seeds will be thrown against each other from various directions, which results in intense collision. Hence, hulling efficiency is highly improved. Furthermore, wind and mixture of kernel and husk run towards each other to ensure full contact, thus significantly improving husk removal efficiency. A vision glass is also equipped on the separator for real time observation of hulling and separating process.

Softening and Adjustment

Major Devices: horizontal drum softening machine, supplementary conveying equipment for feeding and discharging
Applicable Oil Materials: soybeans, rapeseeds, cottonseeds
Production Capacity: 100-1,500t/d

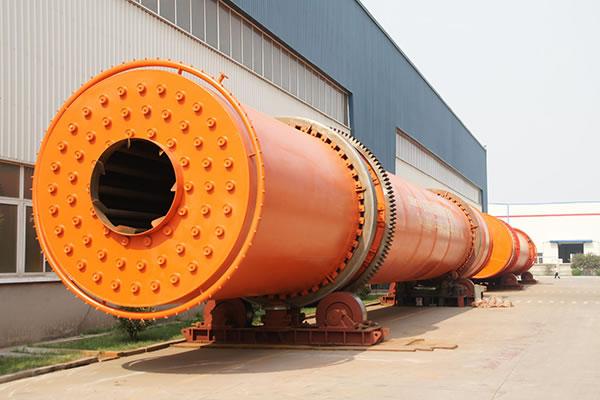

Features of WRG-B Series Horizontal Drum Softening and Conditioning Machine
WRG-B series horizontal drum softening and conditioning machine is one of our patented products. It consists of rotating heating element, air intake system, drainage system, automatic air extraction system and transmission system. The drainage system is specially designed to ensure continuous drainage of all condensate water. As a result, it is able to prevent water from accumulating in bottom tubes contacting materials processed directly. An automatic air extraction valve is installed at the top of the softening machine to expel non-condensable gases, which impede heat transmission. The machine is fitted with an variable frequency motor. The conditioning time is adjustable.

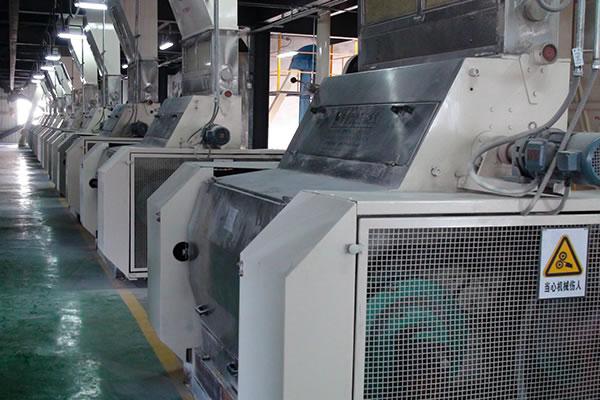

Flaking

Major Devices: automatic control box for material level, magnetic separator for iron removal, flaking mill, hydraulic driving station and conveyor
Applicable Oil Materials: soybeans, rapeseeds, cottonseeds, sunflower seeds, corn germs
Production Capacity per Flaker: 80-500t/d

Features of Flaking Mill
The flaking mill features user friendliness, stable performance and easy maintenance. It is able to ensure automatic control of material level, inverter-driven feeding mode and uniform material layout. It is fitted with a reversible powerful magnet, thus making it convenient to remove impurities attached to the magnet. Flakes obtained features equal thickness, which is in range of 0.25 to 0.35mm.

  • 3, 000t/d soybeans flaking process

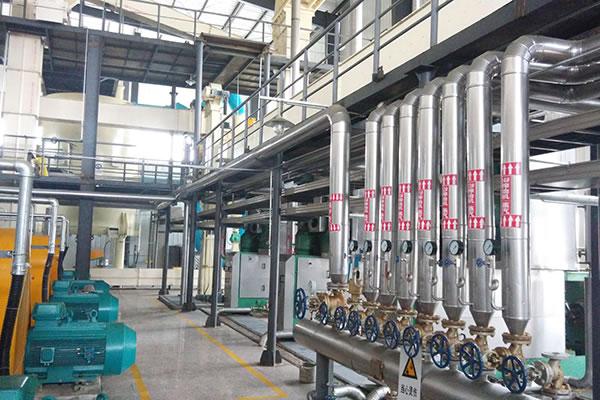

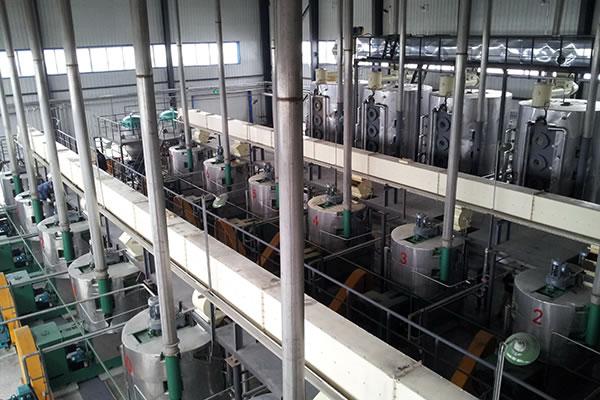

Cooking and Pressing Section

Major Devices: horizontal drum softening machine, flaking mill, cooker, oil presser, flakes cooling machine, crude oil filtering system
Applicable Oil Materials: soybeans, cottonseeds, sunflower seeds, corn germs, camellia seeds
Production Capacity: 50-3000t/d

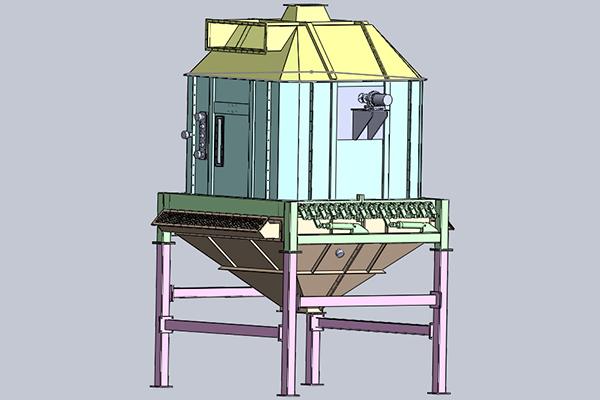

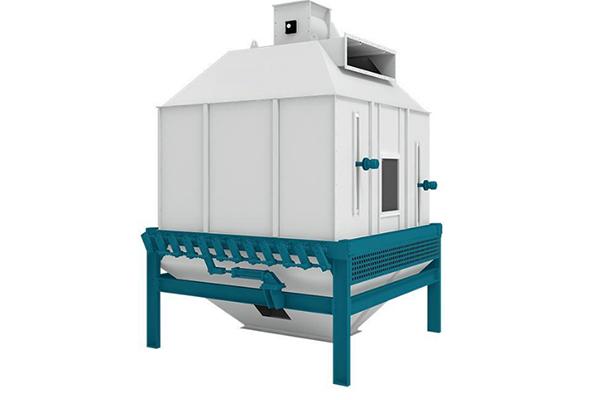

Cooling

Major Equipment: feeding conveyor, air-lock valve, counterflow cooler
