High Pressure Heat Exchanger

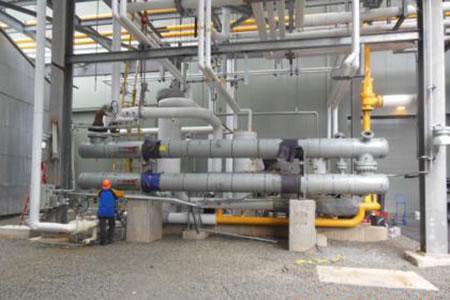

Combustible Gas Heater
Specifications
| Device Name: | Combustible Gas Heater | Medium: | water vapor/natural gas | ||
| Design Pressure (MPa) | Design Temperature (℃) | Thermal Treatment Method | Nondestructive Testing Method | ||
| 18.3/4.48 | 55/288 | PWHT | 100%RT/HLT | ||
| Texture | SA516Gr.70N/SA179/SA105/SA106B | Dimensions: Φ508*9,000*50 | |||
| Heater Introduction | Complied with ASME standards,the heater is designed to heat natural gas using water vapor. Then the natural gas can enter sequential combustor directly. | ||||

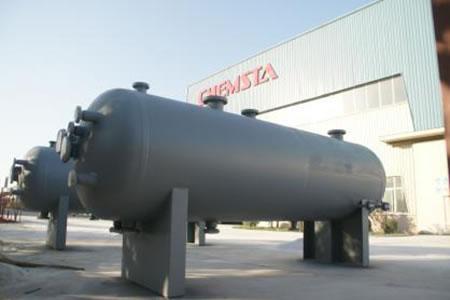

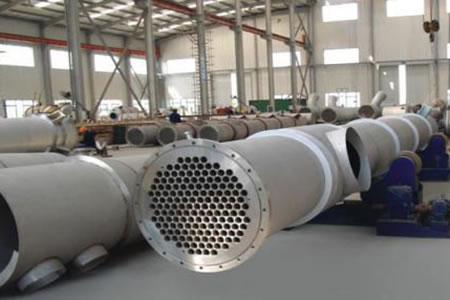

Evaporator
Specifications
| Device Name: | Evaporator |
Medium: | water vapor/mixed oil |
||
| Design Pressure (MPa) | Design Temperature (℃) | Thermal Treatment Method | Nondestructive Testing Method | ||
| 0.65/-0.1 | 168/130 | / | 20%RT | ||
| Texture | SA240 Gr.304/SA312 TP304 | Dimensions: Φ900*5,000*10 | |||
| Evaporator Introduction | Complied with ASME standards,the heater is designed to heat mixed oils using water vapor. Its tube is filled with mixed oil, while its shell is filled with water vapor. Solvent in the mixed oil will vaporize on heating and then be recycled for subsequent sections. | ||||
